RF Gateway Stick Logger (RF)
Ethernet

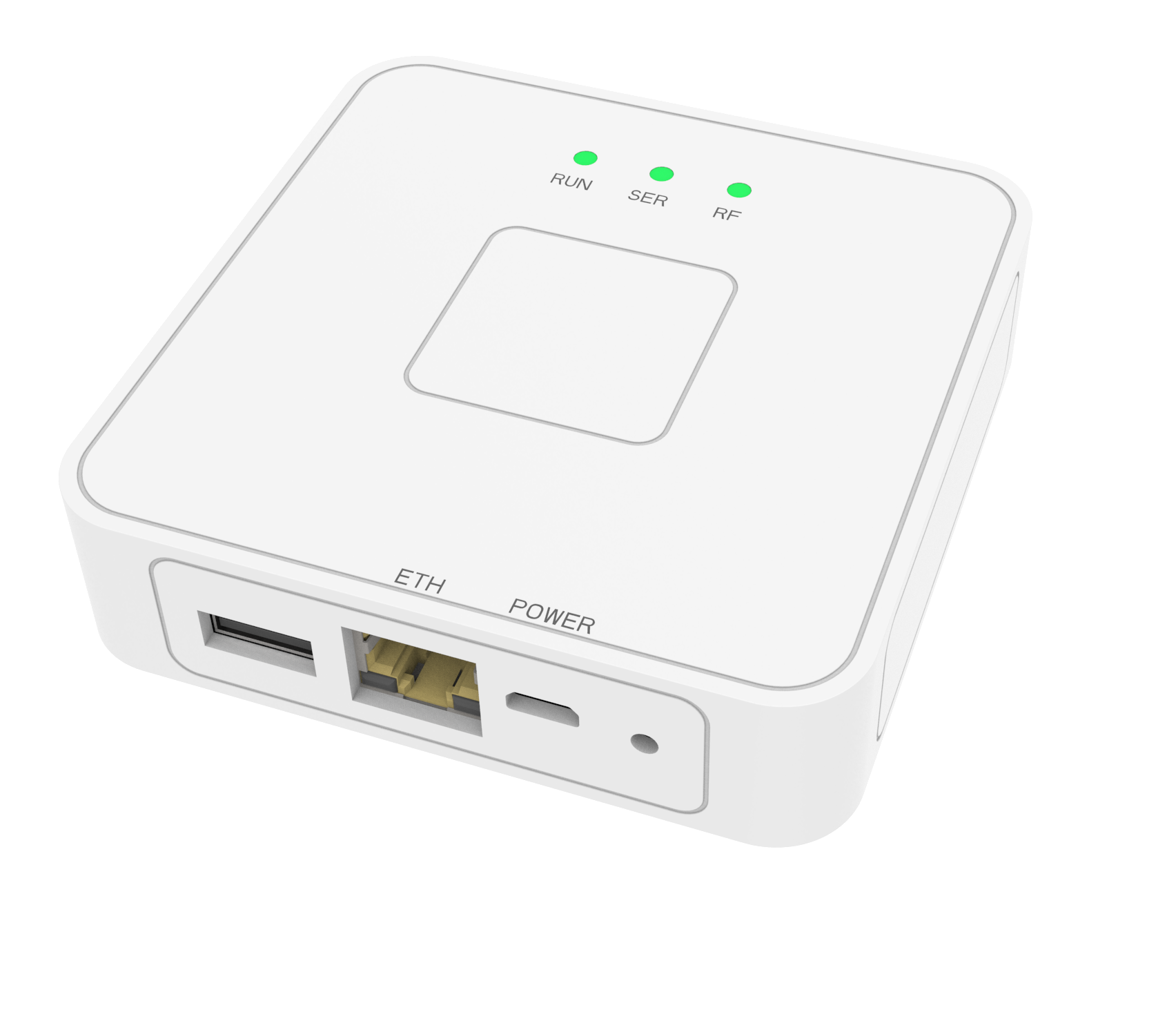

SOLARMAN RF series include RF gateway and stick logger (RF). RF gateway supports local networking, no communication wiring is required. Furthermore, it features in long communication distance and strong through-wall ability.
Single RF gateway can connect to multiple stick logger (RF)s.




Features
  • No communication wiring is required, reducing construction;

  • Long communication distance, reaching 200m in case no shelter exists;

  • Strong through-wall ability, 2 reinforced concrete walls at max;

  • Support multi-device network, high efficiency in data acquisition.



Parameter

RF Gateway Stick Logger (RF)
Product Model RF-100 Product Model LSR-4
Remote Communication Ethernet Local Communication RF
Local Communication RF Serial Communication RS485/RS232/TTL
No. of Connections 10 No. of Connections 1
Local Networking Distance 200m (Without shelter)
Through-wall Ability: 2 reinforced concrete walls (15cm)
(Networking distance reaches 20m when going through 2 walls.)
Working Voltage DC 5V-12V
Working Voltage DC 5V Memory 8M Flash
Memory 8M Flash Working Temperature -30℃~+70℃
Configuration APP/Web Working Humidity 10%-90% (No Condensation)
Working Temperature -30℃~+70℃
Working Humidity 10%-90% (No Condensation)
