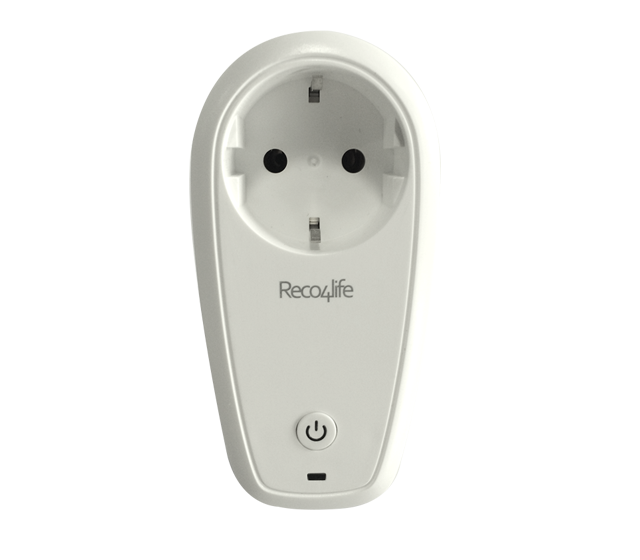

Using smart socket, household appliances can be equipped with in-time turning on/off via smart phone. Only wireless network is required.
P1(16A)—Ultra-low Power Consumption
Specially designed for high-power electrical appliances
Remote switch, live the life as you like
P1(10A)—Get smarter and more portable
GB 5-hole design
Applicable to most of household electriccal appliances
Electric monitoring with high-accuracy chip, bringing a more convenient and comfortable life
Bidirectional synchronization, increasing efficiency
| Product Model | P1（16A） | P1（10A） |
| Colour | White | White |
| Dimension(L*W*H) | 73mm*70mm*59mm | 94mm*54mm*61mm |
| Case Material | Flame Retardant PC Material(V0) | |
| Voltage Range | 90~265V AC | 90~245V AC |
| Max. Current | 16A | 10A |
| Max. Power | 3500W | 2200W |
| Wireless Frequency Range | 2.412-2.484GHz | |
| IEEE Standard | IEEE 802.11 b/g/n | |
| Encryption Mode | WEP64/WEP128/TKIP/CCMP(AES) | |
| Security Mechanism | WEP/WPA-PSK/WEP2-PSK | P1（10A） |
| Standby Power | ≈0.1W | |
| Communication Power | ≈0.3W | |
| Accuracy | 1% | |
| Working Temperature | —20℃~+60℃ | |
| Input Voltage Test | AC 75~265V | |
| EFT Test | ±4kV | |
| Withstanding Voltage Test | 4kV | 3kV |
| Pulse Voltage Test | ±5kV | |
| Surge Test | ±3.5kV (90°Combined ) | |
| ESD Test | 12kV (Air Discharge) | 9kV (Air Discharge) |
| Temperature Test (Full loaded) | <15K (60 mins) | |
